DJ series pressure switches are housed in pressure die cast aluminium powder coated enclosure and are recommended for panel mounting or outdoor service based on the type of enclosure opted for. No stage differential can be set in these 2 SPDT versions (DJ series). Both microswitches are synchronised for operation within practical limits and a slight stage difference is bound to remain between the setpoints (generally not exceeding 2 % of FSR). The repeat accuracy is better than +/- 2 % FSR. Two separate connectors to DIN 43650 are provided for electrical wiring for two independant circuits. Pressure Port is ¼” BSP(F) standard.


  • Fire Fighting Systems
  • Large Power plant where additional safety is required

Product Features

  • Compact
  • Pressure port:1/4" BSPF.
  • Electrical element:SPDT snapaction microswitch.

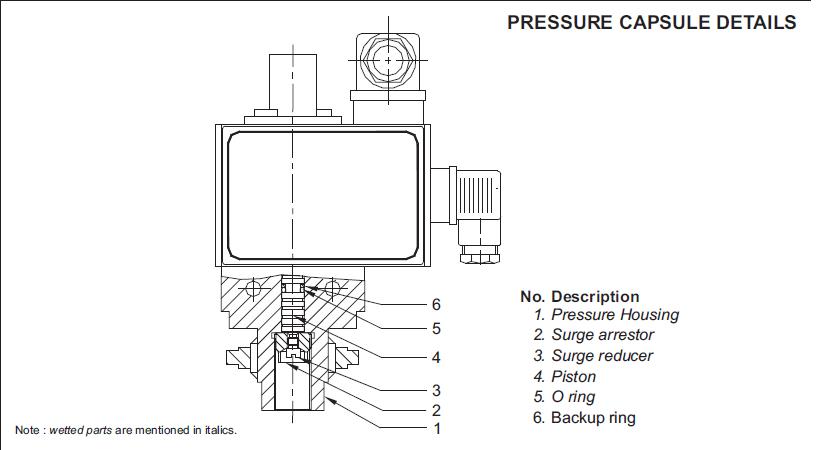

  • Separate chamber for working parts.
  • Choice of wetted parts to suit working media.
  • Electrical rating:5A,250VAC;0.2A,250VDC(res.)
