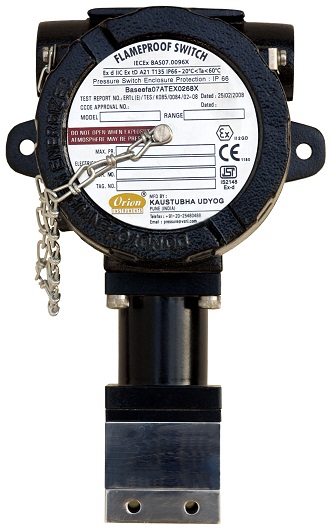

FC series (Ex-proof)
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
ATEX, IECEx & PESO certified FC series pressure and temperature switches have been designed for gas group IIC, the most severe of the explosive gases, and hence can be used in lower severity atmospheres, typically in IIA and IIB. With grey cast iron enclosures, these can also be used in mines.
- ATEX
- CoC
- PESO
- ISI
- CE
- IP66

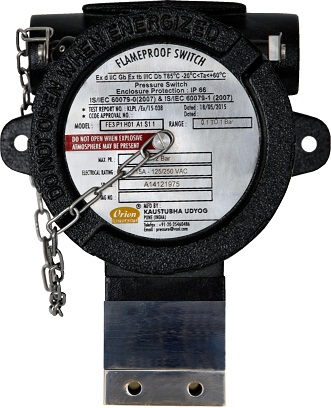

FE series (Ex-proof)
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
PESO certified FE series pressure and temperature switches have been designed for gas group IIC, the most severe of the explosive gases, and hence can be used in lower severity atmospheres, typically in IIA and IIB. With grey cast iron enclosures, these can also be used in mines.
- PESO
- ISI
- IP66

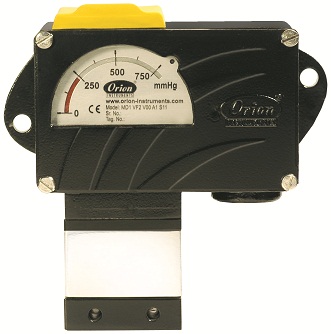

MD series
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
MD and MT series pressure switches have been designed for applications that require robust, long lasting switches, coupled with a high accuracy and repeatability, in adverse conditions. By using appropriate capsules and wetted parts, these series pressure switches can be used for thousands of applications. A wide choice of electrical elements including SPDT, DPDT, gold plated contacts make these switches ideal for a variety of critical applications. A wide scale, when opted for, offers ease of setting, given the smaller least counts.
- CE
- IP66

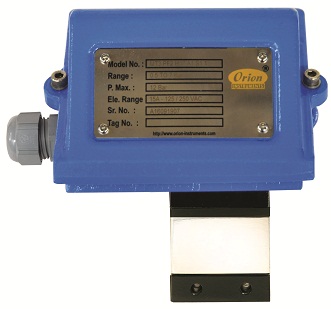

MT series
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
MD and MT series pressure switches have been designed for applications that require robust, long lasting switches, coupled with a high accuracy and repeatability, in adverse conditions. By using appropriate capsules and wetted parts, these series pressure switches can be used for thousands of applications. A wide choice of electrical elements including SPDT, DPDT, gold plated contacts make these switches ideal for a variety of critical applications. A wide scale, when opted for, offers ease of setting, given the smaller least counts.
- CE
- IP66

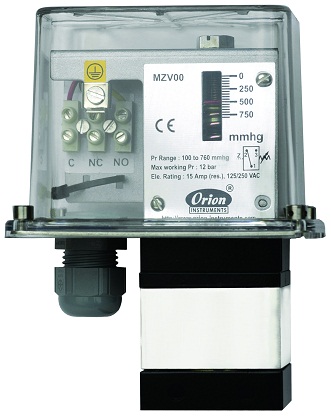

MZ series
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
MZ series pressure switches have been designed for applications that require cost effective outdoor mounting, in aggressive environments. The tough polycarbonate cover, fitted on a stainless steel base, retained by SS screws offers excellent resistance to corrosion, and also allows a view of the internal scale and working of the pressure switch. The reliable micro switch offers narrow dead-band, switching values, which have excellent repeatability
- CE
- IP66
- IP68
MN / MA series (Compact), Fixed diff. / Adjustable diff.
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
The initial of our product lines, these switches are meant for light duty applications for the OEM industry. Many of them need to be used in clean atmospheres, sometimes inside a panel. These are compact, low cost and built just for the intended use. Most of them can be configured for a particular purpose by selecting the wetted parts, but electrical ratings are restricted to 5 A, 250 VAC.
- IP 65

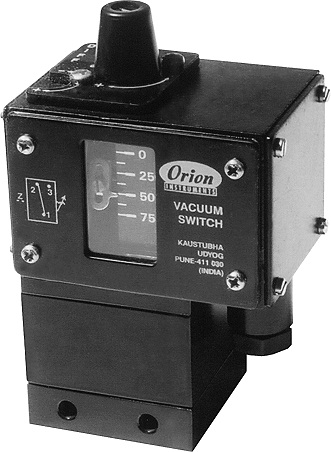

VS1 series (Compact), Fixed differential
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
The initial of our product lines, these switches are meant for light duty applications for the OEM industry. Many of them need to be used in clean atmospheres, sometimes inside a panel. These are compact, low cost and built just for the intended use. Most of them can be configured for a particular purpose by selecting the wetted parts, but electrical ratings are restricted to 5 A, 250 VAC.
MG series (Compact), Fixed differential
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
The initial of our product lines, these switches are meant for light duty applications for the OEM industry. Many of them need to be used in clean atmospheres, sometimes inside a panel. These are compact, low cost and built just for the intended use. Most of them can be configured for a particular purpose by selecting the wetted parts, but electrical ratings are restricted to 5 A, 250 VAC.
- IP 54

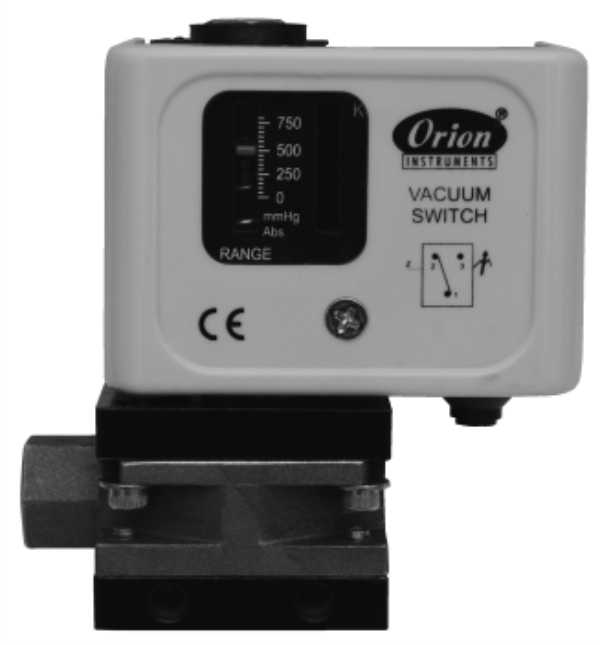

KU series (OEM), Fixed differential
Vacuum Switch
(Range : 760 to 100 mmHg, Pmax : 12 bar)
These are the items which are used in most general purpose applications. These switches cannot be configured and are generally intended for stock and sell. As such, many of them are picked from all the above categories, and can be ordered by part numbers. These will generally have minimum order quantities, and would be available off the shelf.
- CE
- IP30
